mmWave Small Cell

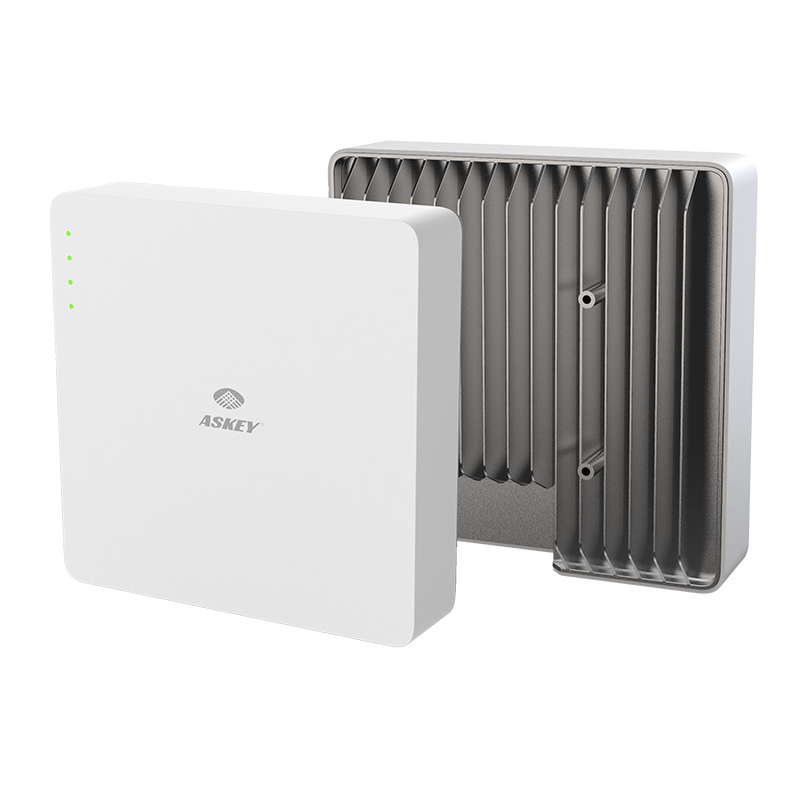

ASKEY’s SCE1000 is an ideal, leading, and field-proven enterprise indoor solution that supports strong 5G performance in the mmWave spectrum.
This super and compact small cell has integrated baseband, radio and antenna into a single product, which helps break installation barriers. It consists of an integrated Massive MIMO antenna array of 64×64 to offer wide coverage, meanwhile supporting up to 400 MHz channel bandwidth. These features make it provide Gbps data throughput, low latency and definitely be suitable for various scenarios, such as smart buildings, factories, hospitals, shopping malls, elevators, etc.

Share

Specifications

General

Band
5G: n257
Bandwidth
Max. 400MHz
Max. TX Power
Total EIRP 43dBm
Antenna
64 dual pol antennas array
LED: 4 LEDs
Backhaul: 2.5G WAN/ 10G SFP+
Power Supply: 12V
Power Consumption: ＜70 W
Active Users: 8~32
Data Rates: 1.2Gbps/200 Mbps
Installation: Wall mount
IP Grade: IP30

Dimensions

W250 x H250 x D80 mm

Weight

＜2.5 kgs

Environmental

Operating Temperature: -5℃ ~ 40℃
Operating Humidity: 90% maximum, non-condensing

Operations and Maintenance

Fault Management
Configuration Management
Performance Management
Security Management
Software Upgrade

Features

NSA Option 3x
3GPP Release 15
Self-Organizing Networks
S1 Automatic Discovery and Configuration
Automatic PCI Selection
Automatic Neighbor Relation (ANR)
VoLTE
S1/X2 handover
Earthquake & Tsunami Warning System (ETWS) & Commercial Mobile Alert Service (CMAS)
Measurement Report
