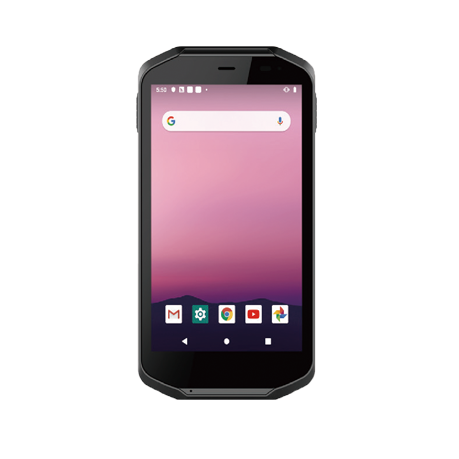

TN503A1

Rugged Handheld 5'' PDT

The handheld terminal with RFID UHF technology is widely used, which can meet the application in retail, storage material management, finance, express delivery, medical and other fields.
.Support for Android 9.0 system
.Integrated 3G/4G all network communication, WiFi and other
communication modes
.Equipped with 4000mAh large capacity battery, the machine has
a endurance of 4 hours
.IP65 high protection level, in accordance with MIL-STD-810G
.Support GPS, GLONASS, more accurate positioning
.Equipped with 13 million pixel auto focus camera, easy to collect
images and video information
.Support 1D/2D, NFC and other functional modules to meet the
application needs of multiple industries
Share

FEATURES

Android

IP65

GPS

Camera

1D/2D

NFC

3G/4G

WIFI

TN501A
  • TRANSPORTATION

    TRANSPORTATION

  • WAREHOUSE MANAGEMENT

    WAREHOUSE MANAGEMENT

  • MARKET

    MARKET

  • EXPRESS INDUSTRY

    EXPRESS INDUSTRY

  • MOBILE PAYMENT

    MOBILE PAYMENT

Application Range

The handheld terminal with RFID UHF technology is widely used, which can meet the application in retail, storage material management, finance, express delivery, medical and other fields.


Specifications

Basic parameters

  • Dimension: 147.7 x 74 x 16.4mm
  • Weight: device unit 220g
  • Device Color: black
  • LCD: 5inch IPS 16:9,720*1280
  • Touch Panel: 5 points Capacitive,G+F
  • Camera: Rear 13MP
  • I/O: TF Card x 1
    SIM Card x 1
    Type C x 1
    8Pin back shell x 1, 2Pin machine buttom x 1
    Φ3.5mm standard earphone jack x 1
  • Power: AC100V ~ 240V, 50Hz/60Hz output DC 5V/2A
  • GPS: support: GPS+Glonass

Performance parameter

  • CPU: Qualcomm(OCTA Core), 2.0GHz
  • OS: Android 9.0
  • RAM: 4GB LPDDR3
  • ROM: 64GB

Battery

  • Capacity: 3.85V/4000mAh
  • Type: Built-in Lithium-ion polymer battery
  • Endurance: 4.5hrs (default 50% volumn, default 200 nit,
    play 1080P HD video)

Network connections

  • WIFI: 2.4G+5.8G dual frequency, WiFi 802.11(a/b/g/n/ac)
  • 2G/3G/4G: CMCC 4M:LTE B1, B3, B5, B7, B8, B20, B38, B39, B40, B41
    WCDMA 1/2/5/8
    GSM 2/3/5/8

Reliability

  • Operate Temperature: -10 °C ~ 55 °C
  • Store Temperature: -20 °C ~ 60 °C
  • Humidity: 95% Non-Condensing
  • IP Grade: IP65

Data Collection

  • NFC: Support SO/IEC under 14443A mifare protocol,
    Card reading distance:3cm~5cm
  • 1D: Support Zebra SE4710,Optional Honeywell N6703
  • 2D: Support Zebra SE4710,Optional Honeywell N6703
