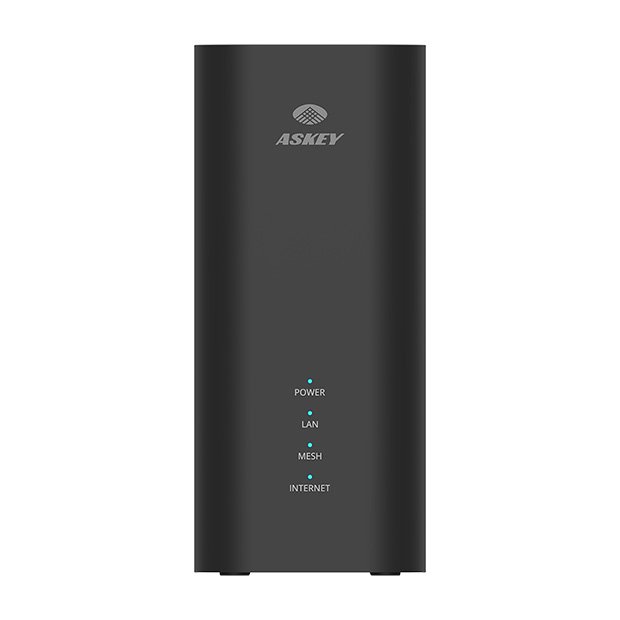

RTM7231T
Tri-Band Wi-Fi 7 Router
高效能的亞旭 Wi-Fi 7 三頻路由器，支援最新 6GHz 頻段，建置穩定可靠的網路環境，因其寬廣的 6GHz 頻段，無其他無線訊號干擾，提供高速的傳輸速率。
RTM7231T 採用 Wi-Fi 7 標準，支援 4096QAM、320MHz 及 MLO 技術，整體最大速率可達 BE9400，其高頻寬與低延遲的特性，非常適合 AR/VR、即時線上遊戲的使用需求。
RTM7231T 配備 2.5GbE WAN 端口，可將優質光纖服務延伸至用戶住所，同時提供一個 2.5GbE 和兩個 1GbE LAN 端口，支持無線和有線網路的高速要求。
RTM7231T 採用 Wi-Fi 7 標準，支援 4096QAM、320MHz 及 MLO 技術，整體最大速率可達 BE9400，其高頻寬與低延遲的特性，非常適合 AR/VR、即時線上遊戲的使用需求。
RTM7231T 配備 2.5GbE WAN 端口，可將優質光纖服務延伸至用戶住所，同時提供一個 2.5GbE 和兩個 1GbE LAN 端口，支持無線和有線網路的高速要求。
Specifications
System
Wireless Standard
- 802.11 b/g/n/ac/ax/be 2.4GHz, data rate 688Mbps
- 802.11 a/n/ac/ax/be 5GHz, data rate 2882Mbps
- 802.11 ax/be 6GHz, data rate 5764Mbps
Wireless Feature
- MLO
- SSID Broadcast
- Auto channel selection
- WPS
- WPA, WPA2, WPA3 security
- Wireless guest network
- 802.11 k/v/r
Firewall
- DMZ
- UPnP
- MAC/URL/Keyword filter
Networking
- IPv4/IPv6
- NAT
- Port forwarding
- DHCP/Static IP/PPPoE
- DNS
Management
- Web GUI (HTTP/HTTPS) management
- Parental control
- Firmware upgrade through GUI
- Trouble shooting
- Config backup/restore
- Reboot/factory reset
Hardware
Chipset
- MediaTek Filogic platform
WAN
- One 2.5GbE RJ-45 port
LAN
- One 2.5GbE RJ-45 port
- Two 1GbE RJ-45 ports
USB
- One USB 3.0 Type A
LED
- Four LED (Green/Red) for Power, LAN, Mesh and Internet
Button
- Power, Reset and WPS
Antenna
- 2.4/5GHz dual band antenna x 2
- 6GHz single band antenna x 2
- 5Hz single band antenna x 1 for DFS
PSU
- 12V/2.5A
Dimension
- 80 x 182 x 130 (WxHxD, mm)
Environment
Operating Environment
- Temperature: 0°C to 40°C
- Humidity: 5% to 85% RH
Storage Environment
- Temperature: -20°C to 70°C
- Humidity: 5% to 85% RH
