SCU5000

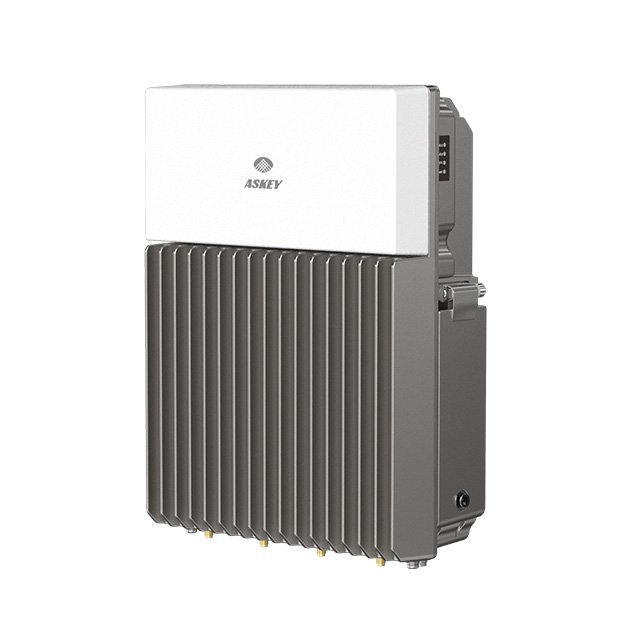

5G Sub-6 Small Cell

SCU5000 符合 3GPP Release 16 時分雙工(TDD)技術規範,專為戶外部署設計的一體化 5G NR gNB 解決方案,每埠傳輸輸出功率為 250mW,支援 Sub-6 GHz 頻段,搭配內建或外接天線進行部署,具備低功耗特性,結合俐落輕巧的外殼設計,確保快速簡便的安裝。

配備便於管理的網頁本地圖形使用者介面(GUI)軟體,提供符合標準的一體化裝置管理平台(AMP),用於無線存取網路(RAN)管理,不僅提供靈活的部署選項,可選擇在公有雲或本地端部署,而且支援管理所有亞旭小型基地台(如 SCU5000)。

SCU5000 使全球電信業者及各垂直產業能有效提升 5G 覆蓋效能,增強 5G 網路容量,有助於降低企業應用部署 5G 專網解決方案的門檻,特別是在製造、倉儲、物流、活動場館、採礦,以及運輸營運等領域。
分享

Specifications

General

  • Frequency Band:                                                                                                  N48/N78 – 3.3~3.8GHz
    N79 - 4.5~4.9GHz
  • Chanel Bandwidth
    All bandwidths defined by 3GPP
  • OBW/IBW:                                                                                100MHz/400MHz
  • Sub-Carrier Spacing:                                                                                          30KHz
  • TX Power:                                                                                                  4~24dBm per port
  • Multiplexing:                                                                                                    4x4 MIMO (4DL/2UL)
  • EIRP:                                                                                                                (30dBm+antenna gain) dBm
  • 5G Antenna
    4x4 internal directional with peak gain 8dBi
  • External Antenna Connector
    4 SMA for 5G antenna
    1 SMA for GPS antenna
  • LED: 4 LED: Power/Service/Status/GPS
  • Backhaul: 2.5G WAN/10G SFP+
  • Power Supply:                                                                                                  AC90~264V/POE++ (support 802.3bt)
  • Power Consumption: <80W
  • Active Users: 64 to 256
  • DL/UL Data Rates: @DL 4layer UL 2layer 256QAM                                       DDDSU: 1400Mbps/200Mbps
    (DDDSU@n48/40MHz: 550Mbps/75Mbps)
    DSUUU: 660Mbps/610Mbps
    (DSUUU@n48/40MHz: 260Mbps/250Mbps)
  • Coverage: LOS 100~150m radius for common usage
  • Installation: Wall/Pole mount
  • IP Grade: IP65
  • Timing Synchronization: GPS/GLONASS/Galileo/PTP 1588V2

Highly Optimized and Integrated with Askey AMP

  • Zero-Touch Provisioning
  • Call Performance KPI Tracking
  • Cell Health Monitoring;
  • Alarm Collection and Alerting Notification
  • Active User Monitoring
  • Schedulable Operations and Software Upgrade
  • Diagnostic and Troubleshooting Traces
  • SON/RRM Metrics Collection and Energy Management
  • Telemetric Exporter for AI

Operation and Maintance

  • IPv4/IPv6
  • Local/Remote WebGUI Management
  • TR069/Netconf
  • Fault Management
  • Configuration Management
  • Performance Management
  • Security Management
  • Software Upgrade

Environmental

Operating Temperature: -22°F to 131°F/-30℃ ~ 55℃
Operating Humidity: 95% maximum, non-condensing
Surge Suppression:
  •  Network interface: 1KV
  •  Power interface: 6KV

Dimensions

  • 240 x 320 x 100 (WxHxD, mm)

Weight

  • <6 kgs

Basic Features

  • SA Network Architecture
  • 3GPP Release 16
  • 4T4R DL 4 layers DL/UL 2 layers
  • Modulation DL 256QAM/UL 256QAM
  • Max 64 Connected, 64 Active Users
  • Max 128 Connected, 128 Acitve Users*
  • Tput(7DS2U/DDDSU) – DL1520/UL200 Mbps
    Tput(DSUUU) – DL660/UL 680 Mbps
    Tput(DSUU) – DL850/UL520 Mbps
    Tput(DDDSUUUUDD 5:4) – DL1100/UL400 Mbps
    Tput(DDDSUDDSUU 7:3) – DL1280/UL310 Mbps
    Tput(DDDSU+UDSUU 4:4 Semi-Synchronous TDD)–DL1000/UL 410 Mbps Tput(DDDSUUDDDD 7:2 Synchronization TDD)–DL1500/UL200 Mbps
  • Radio Link Adaptation
  • IPv6 for N2/N3
  • 64 Active Users
  • Integrity – NIA1/NIA2
  • Ciphering – NEA1/NEA2
  • PCI Confliction Detection
  • Close Loop Power Control
  • DL/UL Resource Scheduling
  • Inter – RAT Handover
  • Measurement Report
  • NG/Xn Handover
  • QOS 5Qi
  • DSCP Marking – Per 5Ql
  • VLAN
  • ViNR/VoNR
  • EPS FallBack
  • CBSD-SAS for N48 Model
  • OAM-Tr069 for CM/FM/PM-KPI/Software upgrade/Plug & Play
  • Synchronization - GPS
  • Synchronization - PTP1588 for SA Model
  • * Available in SW v3.4.1 and later.

Advanced Features*

  • Max 128 Connected, 128 Active Users
  • Max 256 Connected, 256 Active Users*
  • SON-ANR/NRT
  • SON-TNL Discovery
  • ETWS/CMAS
  • Network Slicing (Up to 8 Slices)
  • 2CC Carrier Aggregation (N48 40+40MHz)*
  • MOCN(Up to 6 PLMNs) (IoT Integration Required)
  • NG–Flex(Up to 6 AMFs)
  • Security IPsec/CMPv2 (IoT Integration Required)
  • 5G LAN
  • * Available in SW v3.4.1 and later.

SKU

  • Model Name: NR xCell 60256BF
    SKU1: SCU5050-N78 (3.3~3.8GHz)
    Certification: CE (TBD)/NCC (3.3~3.57GHz)                                                      SKU2: SCU5000-N48 (3.55~3.7GHz)                                                        Certification: FCC/OnGo (3.55~3.7GHz)
  • Model Name: NR xCell 60256CF
    SKU3: SCU5000-N79 (4.5~4.9GHz)
    Certification: NCC (4.8~4.9GHz)/TELEC (TBD)

Accessory List

  • Power cable *1
  • GPS Antenna *1
  • Ground Cable *1
  • Mounting-kit *1
  • L-shaped hex key *1

Ordering Information

  • 4x4 Directional Antenna Kit
    º Operation Frequency: 3300-5000 MHz
    º Dimension: 220 x 220 x 45 mm
    º Antenna gain: 11.5
    º 2 meters SMA to SMA cable *4
    º Pole and wall mounting kit

Contact Askey

亞旭為客戶提供最佳服務

sales@askey.com
