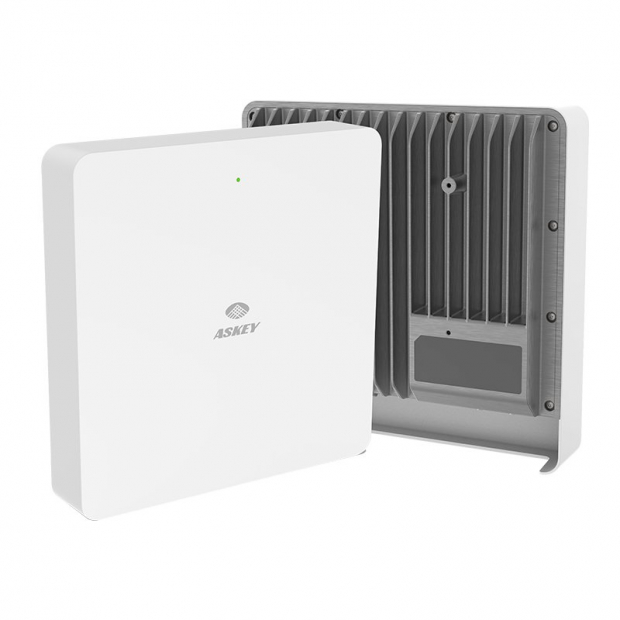

SCE2200

室內5G Sub-6 Small Cell

滿足企業級5G-NR Sub-6GHz N78/N79頻段室內網路覆蓋,提供卓越網路接入體驗。
亞旭的 SCE2200 提供 5G Sub-6 室內覆蓋。NR xCell 80156 系列包括 N78 和 N79 兩種不同的 SKU,滿足企業級連接的關鍵需求。通過將 5G 基頻、無線電和天線集成到單個產品中,打破了安裝障礙。此電信級的亞旭小基站端到端解決方案適用於各種場景,如智慧樓宇、工廠、醫院、商場、電梯、地下停車場等。
分享

Specifications

General

  • Band: N78/N79
  • Bandwidth
    • N78: 20/30/40/50/60/70/80/90/100MH
    • N79: 100MHz
  • TX Power (per port): 0 ~ 24dBm
  • EIRP: (27+antenna gain) dBm
  • 5G Antenna: 2x2 internal Omni                                                                        Peak Gain: N78: 6dBi                                                                                                             N79: 7dBi
  • External Antenna Connector                                                                              2 SMA for 5G antenna                                                                                    1 SMA for GPS antenna
  • LED: 1 LED
  • Backhaul: 2.5G WAN/10G SFP+
  • Power Supply: DC 12V/POE++ (support 802.3bt)
  • Power Consumption: <50 W
  • Active Users: 64
  • DL/UL Data Rates:
    DDDSU: 750Mbps/200Mbps                                                                              DSUU: 300Mbps/500Mbps
  • Modulation: 256QAM DL/UL
  • Coverage: LOS 70 ~ 100m for common usage
  • Installation: Wall/Ceiling/Pole mount
  • IP Grade: IP50
  • Timing Synchronization: GPS/GLONASS/Galileo/PTP 1588V2

Dimensions

  • 250 x 250 x 65 (WxHxD, mm)

Weight

  • <2.5 kgs

Environmental

  • Operating Temperature: 23°F to 113°F / -5℃ ~ 45℃
  • Operating Humidity: 90% maximum, non-condensing

Operations and Maintenance

  • IPv4/IPv6
  • Local/Remote WebGUI Management
  • TR069
  • Fault Management
  • Configuration Management
  • Performance Management
  • Security Management
  • Software Upgrade

Highly Optimized and Integrated with Askey AMP

  • Zero-Touch Provisioning
  • Call Performance KPI Tracking
  • Cell Health Monitoring
  • Alarm Collection and Alerting Notification
  • Active User Monitoring
  • Schedulable Operations and Software Upgrade
  • Diagnostic and Troubleshooting Traces
  • SON/RRM Metrics Collection and Energy Management
  • Telemetric Exporter for AI

Basic Features

  • SA Network Architecture
  • 3GPP Release 15
  • 3GPP Release 16 Partial
  • Radio Link Adaptation
  • Integrity–NIA1/NIA2
  • Ciphering–NEA1/NEA2
  • PCI Confliction Detection
  • Close Loop Power Control-
  • DL/UL Resource Scheduling
  • Inter–RAT Handover
  • Measurement Report
  • NG/Xn Handover
  • QOS 5Qi
  • DSCP Marking–Per 5QI
  • VLAN

SKU

  • Model Name: NR xCell 80156B
    • SKU: SCE2200 N78 (3.3 ~ 3.8GHz)
    • Certification: CE/NCC
  • Model Name: NR xCell 80156C
    • SKU: SCE2200 N79 (4.4 ~ 5.0GHz)
    • Certification: TELEC/NCC
  • Model Name: SCE2200 N78
    • SKU: SCE2200 N78 (3.3 ~ 3.8GHz)
    • Certification: NCC
  • Model Name: SCE2200 N79
    • SKU: SCE2200 N79 (4.4 ~ 5.0GHz)
    • Certification: NCC

Ordering Information

  • Wall/Celling/Pole Mounting Kit
