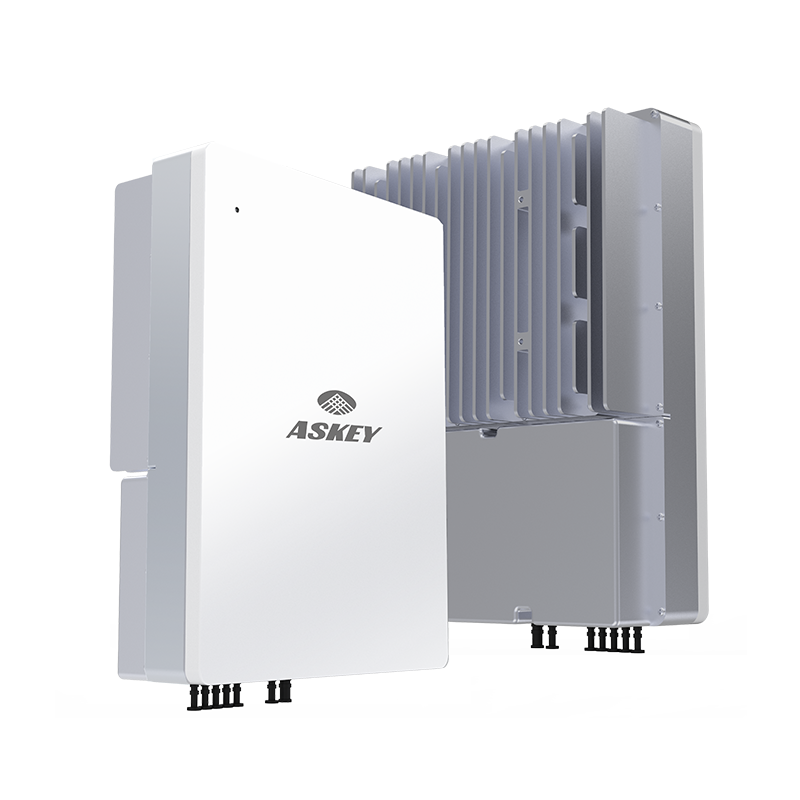

SCU2000
戶外5G Sub-6 Small Cell
支援5G Sub-6的企業等級戶外網路覆蓋。
Askey SCU2000 NR xCell 60156系列包括SCU2000 N78 和 N79兩個不同的SKU，滿足企業級連接需求。這款小型的小基站集合5G基頻、無線電和天線於一體，打破了安裝障礙。憑藉電信級的亞旭端到端小基站解決方案，有助於解決智慧樓宇、工廠、醫院、商場、電梯、地下停車場等各種場景的網路問題。
Askey SCU2000 NR xCell 60156系列包括SCU2000 N78 和 N79兩個不同的SKU，滿足企業級連接需求。這款小型的小基站集合5G基頻、無線電和天線於一體，打破了安裝障礙。憑藉電信級的亞旭端到端小基站解決方案，有助於解決智慧樓宇、工廠、醫院、商場、電梯、地下停車場等各種場景的網路問題。
Specifications
General
- Band
N78/N79 - Bandwidth
- N78: 20/30/40/50/60/70/80/90/100MH
- N79: 100MHz
- Max. TX Power
N78/N79: 24dBm - EIRP
N78/N79: 31dBm - Antenna
Internal/External 2x2 MIMO - LED: 1 LED
- Backhaul: 2.5G WAN/10G SFP+
- Power Supply: AC 90~264V
- Power Consumption: <70 W
- Active Users: 16~64
- Data Rates
DDDSU: 750Mbps/200Mbps - Coverage
LOS 100m radius for common usage - Installation: Wall/Pole mount
- IP Grade: IP65
Dimensions
- 270 x 355 x 100 (WxHxD, mm)
Weight
- <7 kgs
Environmental
- Operating Temperature: -20℃ ~ 55℃
- Operating Humidity: 90% maximum, non-condensing
Operations and Maintenance
- Fault Management
- Configuration Management
- Performance Management
- Security Management
- Software Upgrade
Features
- SA Network Architecture
- 3GPP Release 15
- Self Organizing Networks
- DL/UL Resource Scheduling
- Measurement Report
- NG/Xn Handover
- WebGUI Management
SKU
- Model Name: NR xCell 60156B
- SKU1: SCU2000 N78 (3.3~3.8GHz)
- Model Name: NR xCell 60156C
- SKU2: SCU2000 N79 (4.4~5.0GHz)
