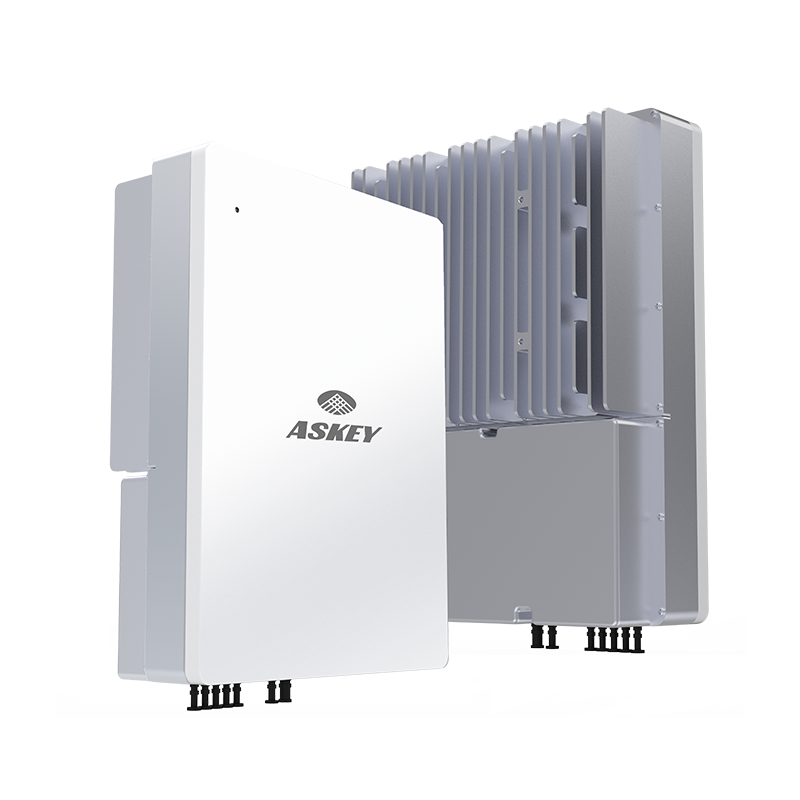

SCU2050
戶外5G Sub-6 Small Cell
提供5G Sub-6的企業等級戶外網路覆蓋。
Askey SCU2050 NR xCell 60116A系列包括SCU2050 N48、N77、N78和N79 5個不同的 SKU，滿足企業級連接需求。不僅提供卓越網路接入體驗，還集成5G基頻、無線電和天線於一機，打破安裝壁壘。應用電信級亞旭小基站端到端解決方案，解決智慧樓宇、工廠、醫院、商場、電梯、地下停車場等各種場景的問題。
Askey SCU2050 NR xCell 60116A系列包括SCU2050 N48、N77、N78和N79 5個不同的 SKU，滿足企業級連接需求。不僅提供卓越網路接入體驗，還集成5G基頻、無線電和天線於一機，打破安裝壁壘。應用電信級亞旭小基站端到端解決方案，解決智慧樓宇、工廠、醫院、商場、電梯、地下停車場等各種場景的問題。
Specifications
General
- Band
N48/N77/N78/N79 - Bandwidth
- N48: 20/30/40MHz
- N77: 40/50/60/70/80/90/100MHz
- N78: 20/30/40/50/60/70/80/90/100MHz
- N79: 100MHz
- Max. TX Power
- N48: EIRP < 30dBm
- N77/N78/N79: 24dBm
- EIRP
- N48 < 30dBm
- N77/N78/N79: 31dBm
- Antenna
Internal/External 2x2 MIMO - LED: 1 LED
- Backhaul: 2.5G WAN/10G SFP+
- Power Supply: AC 90~264V
- Power Consumption: < 70 W
- Active Users: 16~64
- Data Rates:
DDDSU: 750Mbps/200Mbps - Coverage
LOS 100m radius for common usage - Installation: Wall/Pole mount
- IP Grade: IP65
Dimensions
- 270 x 355 x 100 (WxHxD, mm)
Weight
- <7 kgs
Environmental
- Operating Temperature: -20℃ ~ 55℃
- Operating Humidity: 90% maximum, non-condensing
Operations and Maintenance
- Fault Management
- Configuration Management
- Performance Management
- Security Management
- Software Upgrade
Features
- SA Network Architecture
- 3GPP Release 15
- Self Organzing Networks
- DL/UL Resource Scheduling
- Measurement Report
- NG/Xn Handover
- WebGUI Management
SKUs
- Model Name: NR xCell 60156A
- SKU1: SCU2050 N77 (3.55~4.2GHz)
- SKU2: SCU2050 N78 (3.55~3.8GHz)
- SKU3: SCU2050 N48 (3.55~3.7GHz)
- Model Name: NR xCell 60156B
- SKU4: SCU2050 N78 (3.3~3.8GHz)
- Model Name: NR xCell 60156C
- SKU5: SCU2050 N79 (4.5~4.9GHz)
