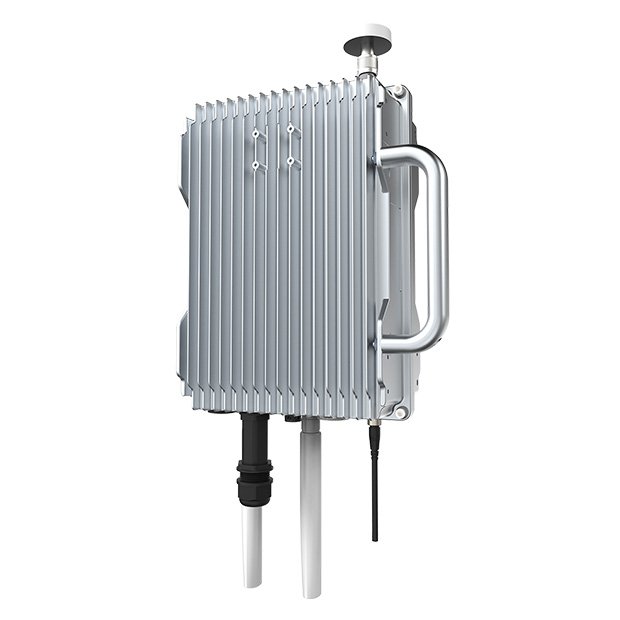

戶外5G Sub-6 Small Cell

General

• Band：N79 (4.8 ~ 4.9GHz)
• Bandwidth: 100MHz
• Max. TX Power：5W (37dBm) per port
• EIRP
  • 52dBm (Directional Antenna)
  • 45dBm (Omni Antenna)
• Antenna：External 2x2 MIMO
• LED: 1 LED
• Backhaul: 2.5G WAN/10G SFP+
• Power Supply: AC 90 ~ 264V
• Power Consumption: < 100 W
• Active Users: 64
• Time Slot vs Data Rates
  • DDDSU: 750Mbps/200Mbps
  • DSUUU: 330Mbps/610Mbps
  • DDDSU+DDSUU (7:3): 640Mbps/310Mbps
  • 4:4 Semi-Synchronous TDD: 480Mbps/432Mbps
  • 7:2 Synchronous TDD: 765Mbps/216Mbps
  • 2:6 Semi-Synchronous TDD: 320Mbps/648Mbps
  • 3:5 Semi-Synchronous TDD: 380Mbps/540Mbps
• Modulation 256QAM DL/UL
• Coverage
  LOS 500m for common usage (Directional Antenna)
• Installation: Wall/Pole mount
• IP Grade: IP66
• Timing Synchronization: GPS/PTP

Dimensions

• 321 x 231 x 135 (WxHxD, mm)

Weight

• <10 kgs

• Operating Temperature: -40℃ ~ 55℃
• Operating Humidity: 90% maximum, non-condensing

• IPv4/IPv6
• Local/Remote WebGUI Management
• TR069/Netconf
• Fault Management
• Configuration Management
• Performance Management
• Security Management
• Software Upgrade
• KPI Counter

• SA Network Architecture
• 3GPP Release 15
• 3GPP Release 16 Partial
• Radio Link Adaptation
• 64 Active Users
• Integrity – NIA1/NIA2
• Ciphering – NEA1/NEA2
• PCI confliction detection
• Close loop Power Control
• DL/UL Resource Scheduling
• Inter-RAT Handover
• Measurement Report
• NG/Xn Handover
• QOS 5Qi
• DSCP marking - Per 5QI
• VLAN
