TGU
TGU

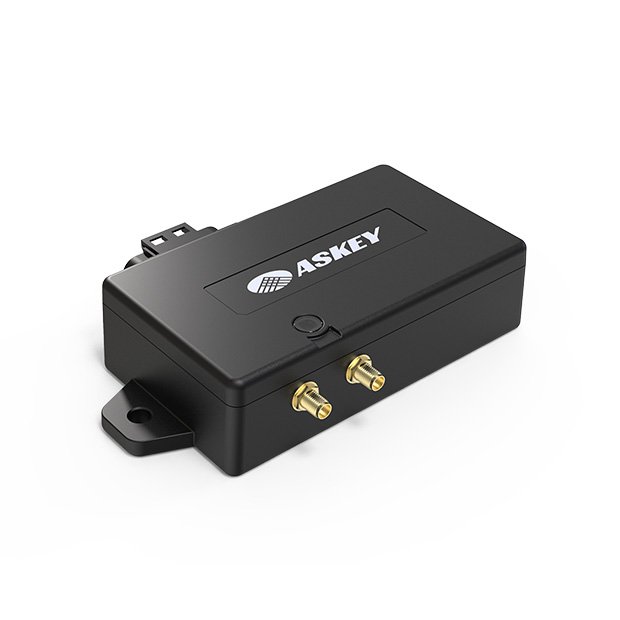

Askey TGU is a wireless and concatenated sensor gateway
The TGU, an innovative connectable sensor gateway, transforms the dynamics of vehicle sensor integration through a seamless blend of wireless and wired connectivity. Interfacing effortlessly with up to 24-48 sets of BLE-enabled devices, it not only simplifies the management and transmission of vehicle data but places a spotlight on the unparalleled efficiency of its wireless capabilities, ushering in a new era in sensor connectivity.
The TGU, an innovative connectable sensor gateway, transforms the dynamics of vehicle sensor integration through a seamless blend of wireless and wired connectivity. Interfacing effortlessly with up to 24-48 sets of BLE-enabled devices, it not only simplifies the management and transmission of vehicle data but places a spotlight on the unparalleled efficiency of its wireless capabilities, ushering in a new era in sensor connectivity.
Specifications
Major Features
- LTE Cat 4, 3GPP EUTRA Release 10
- Support Nano SIM/eSIM
- GNSS : Support GPS/GLONASS/GALILEO/BeiDou/QZSS
- Bluetooth 5.3 BLE, 128-bit AES, up to 24 connections
- Antenna (internal) : 1 x LTE, 1 x GNSS, 1 x BLE
- Motion Sensor : Gyroscope & Accelerometer
- Indicator/Alerts : LED/Buzzer
- CAN FD x 2, LIN x 2, RS485 x 1
- Concatenated : VDD output 12V/24V, 1A
Software Features
- SAE J1979 & 1939 protocols
- Vehicle data
- TGU Diagnostic
- OTA Update for the entire vehicle
- Fleet management
- Wake up over CAN/IGN/BLE
- NTP client
Physical Features
- OBD Dimensions: 130 x 74.5 x 36 (LxWxH, mm)
- IP Class : IP65
- Operation Temperature: -40º C ~ +105º C
