SCU5000

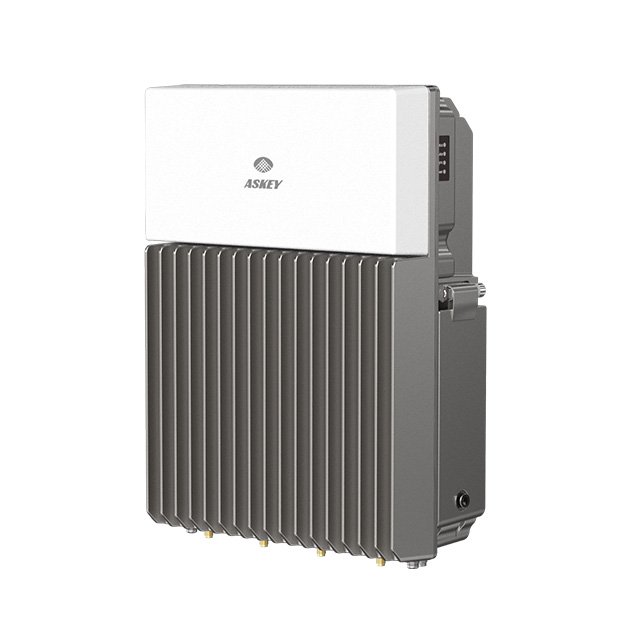

5G Sub-6 Small Cell

The SCU5000 is an advanced, all-in-one 5G NR gNB solution designed for outdoor deployment, compliant with 3GPP Release 16 Time Division Duplex (TDD) technology.

With a transmission output of 250mW per port, the SCU5000 supports Sub-6 GHz frequency bands and can be deployed with either integrated or external antennas. Its low power consumption, combined with a compact and lightweight enclosure, ensures quick and easy installation.

The SCU5000 is equipped with local web-based Graphical User Interface (GUI) software applications for easy configuration and management. In addition, Askey offers a comprehensive standard-compliant all-in-one Device Management Platform (AMP) for RAN network management. This platform provides flexible deployment options, either on a public cloud or on-premises, supporting the management of all Askey small cells such as the SCU5000.

The SCU5000 enables operators and verticals worldwide to enhance 5G coverage performance effectively and improve 5G network capacity. It also helps lower the barriers to deploying private 5G solutions for enterprise applications, particularly in industries such as manufacturing, warehousing, logistics, event venues, mining, and transportation management and operation.
Share

Specifications

General

  • Frequency Band:                                                                                                  N48/N78 – 3.3~3.8GHz
    N79 - 4.5~4.9GHz
  • Chanel Bandwidth
    All bandwidths defined by 3GPP
  • OBW/IBW:                                                                                100MHz/400MHz
  • Sub-Carrier Spacing:                                                                                          30KHz
  • TX Power:                                                                                                  4~24dBm per port
  • Multiplexing:                                                                                                    4x4 MIMO (4DL/2UL)
  • EIRP:                                                                                                                (30dBm+antenna gain) dBm
  • 5G Antenna
    4x4 internal directional with peak gain 8dBi
  • External Antenna Connector
    4 SMA for 5G antenna
    1 SMA for GPS antenna
  • LED: 4 LED: Power/Service/Status/GPS
  • Backhaul: 2.5G WAN/10G SFP+
  • Power Supply:                                                                                                  AC90~264V/POE++ (support 802.3bt)
  • Power Consumption: <80W
  • Active Users: 64 to 256
  • DL/UL Data Rates: @DL 4layer UL 2layer 256QAM                                       DDDSU: 1400Mbps/200Mbps
    (DDDSU@n48/40MHz: 550Mbps/75Mbps)
    DSUUU: 660Mbps/610Mbps
    (DSUUU@n48/40MHz: 260Mbps/250Mbps)
  • Coverage: LOS 100~150m radius for common usage
  • Installation: Wall/Pole mount
  • IP Grade: IP65
  • Timing Synchronization: GPS/GLONASS/Galileo/PTP 1588V2

Highly Optimized and Integrated with Askey AMP

  • Zero-Touch Provisioning
  • Call Performance KPI Tracking
  • Cell Health Monitoring;
  • Alarm Collection and Alerting Notification
  • Active User Monitoring
  • Schedulable Operations and Software Upgrade
  • Diagnostic and Troubleshooting Traces
  • SON/RRM Metrics Collection and Energy Management
  • Telemetric Exporter for AI

Operation and Maintance

  • IPv4/IPv6
  • Local/Remote WebGUI Management
  • TR069/Netconf
  • Fault Management
  • Configuration Management
  • Performance Management
  • Security Management
  • Software Upgrade

Environmental

Operating Temperature: -22°F to 131°F/-30℃ ~ 55℃
Operating Humidity: 95% maximum, non-condensing
Surge Suppression:
  •  Network interface: 1KV
  •  Power interface: 6KV

Dimensions

  • 240 x 320 x 100 (WxHxD, mm)

Weight

  • <6 kgs

Basic Features

  • SA Network Architecture
  • 3GPP Release 16
  • 4T4R DL 4 layers DL/UL 2 layers
  • Modulation DL 256QAM/UL 256QAM
  • Max 64 Connected, 64 Active Users
  • Max 128 Connected, 128 Acitve Users*
  • Tput(7DS2U/DDDSU) – DL1520/UL200 Mbps
    Tput(DSUUU) – DL660/UL 680 Mbps
    Tput(DSUU) – DL850/UL520 Mbps
    Tput(DDDSUUUUDD 5:4) – DL1100/UL400 Mbps
    Tput(DDDSUDDSUU 7:3) – DL1280/UL310 Mbps
    Tput(DDDSU+UDSUU 4:4 Semi-Synchronous TDD)–DL1000/UL 410 Mbps Tput(DDDSUUDDDD 7:2 Synchronization TDD)–DL1500/UL200 Mbps
  • Radio Link Adaptation
  • IPv6 for N2/N3
  • 64 Active Users
  • Integrity – NIA1/NIA2
  • Ciphering – NEA1/NEA2
  • PCI Confliction Detection
  • Close Loop Power Control
  • DL/UL Resource Scheduling
  • Inter – RAT Handover
  • Measurement Report
  • NG/Xn Handover
  • QOS 5Qi
  • DSCP Marking – Per 5Ql
  • VLAN
  • ViNR/VoNR
  • EPS FallBack
  • CBSD-SAS for N48 Model
  • OAM-Tr069 for CM/FM/PM-KPI/Software upgrade/Plug & Play
  • Synchronization - GPS
  • Synchronization - PTP1588 for SA Model
  • * Available in SW v3.4.1 and later.

Advanced Features*

  • Max 128 Connected, 128 Active Users
  • Max 256 Connected, 256 Active Users*
  • SON-ANR/NRT
  • SON-TNL Discovery
  • ETWS/CMAS
  • Network Slicing (Up to 8 Slices)
  • 2CC Carrier Aggregation (N48 40+40MHz)*
  • MOCN(Up to 6 PLMNs) (IoT Integration Required)
  • NG–Flex(Up to 6 AMFs)
  • Security IPsec/CMPv2 (IoT Integration Required)
  • 5G LAN
  • * Available in SW v3.4.1 and later.

SKU

  • Model Name: NR xCell 60256BF
    SKU1: SCU5050-N78 (3.3~3.8GHz)
    Certification: CE (TBD)/NCC (3.3~3.57GHz)                                                      SKU2: SCU5000-N48 (3.55~3.7GHz)                                                        Certification: FCC/OnGo (3.55~3.7GHz)
  • Model Name: NR xCell 60256CF
    SKU3: SCU5000-N79 (4.5~4.9GHz)
    Certification: NCC (4.8~4.9GHz)/TELEC (TBD)

Accessory List

  • Power cable *1
  • GPS Antenna *1
  • Ground Cable *1
  • Mounting-kit *1
  • L-shaped hex key *1

Ordering Information

  • 4x4 Directional Antenna Kit
    º Operation Frequency: 3300-5000 MHz
    º Dimension: 220 x 220 x 45 mm
    º Antenna gain: 11.5
    º 2 meters SMA to SMA cable *4
    º Pole and wall mounting kit

Contact Askey

Get started to conduct business with ASKEY!

sales@askey.com
