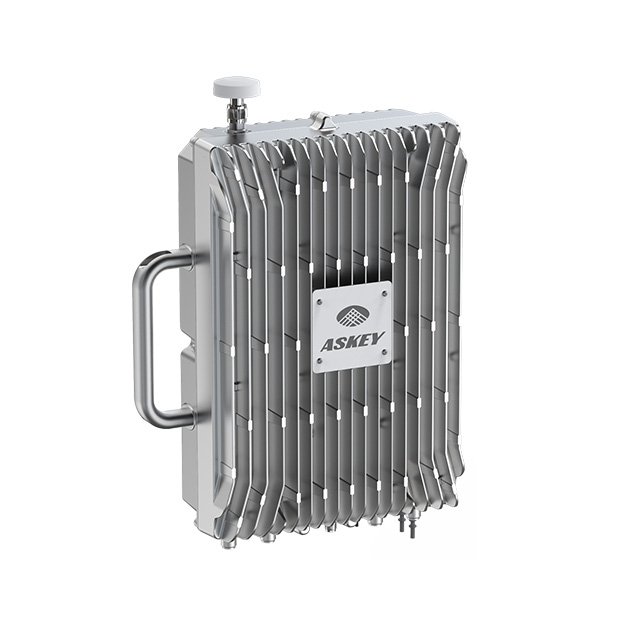

SCU5050
5G Sub-6 Small Cell
The SCU5050 is an advanced, all-in-one 5G NR gNB solution designed for outdoor deployment, compliant with 3GPP Release 16 Time Division Duplex (TDD) technology.
With a transmission output of 5W per port, the SCU5050 supports Sub-6 GHz frequency bands and is deployed with external antennas. Its low power consumption, combined with a compact and lightweight enclosure, ensures quick and easy installation.
The SCU5050 is equipped with local web-based Graphical User Interface (GUI) software applications for easy configuration and management. In addition, Askey offers a comprehensive standard-compliant all-in-one Device Management Platform (AMP) for RAN network management. This platform provides flexible deployment options, either on a public cloud or on-premises, supporting the management of all Askey small cells such as the SCU5050.
The SCU5050 enables operators and verticals worldwide to enhance 5G coverage performance effectively and improve 5G network capacity. It also helps lower the barriers to deploying private 5G solutions for enterprise applications, particularly in industries such as manufacturing, warehousing, logistics, event venues, mining, and transportation management and operation.
With a transmission output of 5W per port, the SCU5050 supports Sub-6 GHz frequency bands and is deployed with external antennas. Its low power consumption, combined with a compact and lightweight enclosure, ensures quick and easy installation.
The SCU5050 is equipped with local web-based Graphical User Interface (GUI) software applications for easy configuration and management. In addition, Askey offers a comprehensive standard-compliant all-in-one Device Management Platform (AMP) for RAN network management. This platform provides flexible deployment options, either on a public cloud or on-premises, supporting the management of all Askey small cells such as the SCU5050.
The SCU5050 enables operators and verticals worldwide to enhance 5G coverage performance effectively and improve 5G network capacity. It also helps lower the barriers to deploying private 5G solutions for enterprise applications, particularly in industries such as manufacturing, warehousing, logistics, event venues, mining, and transportation management and operation.
Specifications
General
- Band: N48 (3.55~3.7GHz)
N77 (3.8~4.2GHz)
N78L (3.3-3.57GHz)
N78H (3.7-3.8GHz)
N79 (4.8~4.9GHz) - Bandwidth: All bandwidths defined by 3GPP
- Carrier Aggregation: N48 CA: 40+40MHz @IBW
within 200MHz - OBW/IBW: 100MHz/400MHz
- Sub-Carrier Spacing: 30KHz
- VSWR Support
- TX Power: 17~37dBm per port
- Multiplexing: 4x4 MIMO (4DL/2UL)
- EIRP: N77/N78/N79: (43+antenna gain) dBm
- External Antenna Connector: 4 N-Type for 5G antenna
1 N-Type for GPS antenna - LED: 4 LED: Power/Service/Status/GPS
- Backhaul: 10G WAN/10G SFP+
- Power Supply: AC 90~264V ± 48V DC (AC Adapter and power surge protector included) (Optional)
- Power Consumption: <200 W
- Active Users: Up to 256
- DL/UL Data Rates: @DL 4layer UL 2layer 256QAM
DDDSU: 1400Mbps/200Mbps
DSUUU: 660Mbps/610Mbps - Coverage: LOS 500m ~ 1km via various frequency and high gain antenna
- Installation: Wall/Pole mount
- IP Grade: IP65
- Timing Synchronization: GPS/GLONASS/Galileo/PTP 1588V2
Highly Optimized and Integrated with Askey AMP
- Zero-Touch Provisioning
- Call Performance KPI Tracking
- Cell Health Monitoring;
- Alarm Collection and Alerting Notification
- Active User Monitoring
- Schedulable Operations and Software Upgrade
- Diagnostic and Troubleshooting Traces
- SON/RRM Metrics Collection and Energy Management
- Telemetric Exporter for AI
Dimensions
- 280 x 400 x 145 (WxHxD, mm)
Weight
- <12 kgs
Operations and Maintenance
- IPv4/IPv6
- Local/Remote WebGUI Management
- TR069/Netconf
- Fault Management
- Configuration Management
- Performance Management
- Security Management
- Software Upgrade
- Energy Saving mode
Environmental
Operating Temperature: -22°F to 131°F/-30℃ ~ 55℃Operating Humidity: 95% maximum, non-condensing
Surge Suppression:
- Network interface: 1KV
- Power interface: 6KV
Basic Features
- SA Network Architecture
- 3GPP Release 16
- 4T4R DL 4 layers DL/UL 2 layers
- Modulation DL 256QAM/UL 256QAM
- Max 64 Connected, 64 Active Users
- Tput(7DS2U/DDDSU) – DL1520/UL200 Mbps
Tput(DSUUU) – DL660/UL 680 Mbps
Tput(DSUU) – DL850/UL520 Mbps
Tput(DDDSUUUUDD 5:4) – DL1100/UL400 Mbps
Tput(DDDSUDDSUU 7:3) – DL1280/UL310 Mbps
Tput(DDDSU+UDSUU 4:4 Semi-Synchronous TDD)–DL1000/UL 410 Mbps Tput(DDDSUUDDDD 7:2 Synchronization TDD)–DL1500/UL200 Mbps - Radio Link Adaptation
- IPv6 for N2/N3
- Integrity – NIA1/NIA2
- Ciphering – NEA1/NEA2
- PCI Confliction Detection
- Close Loop Power Control
- DL/UL Resource Scheduling
- Inter – RAT Handover
- Measurement Report
- NG/Xn Handover
- 3GPP QOS 5Qi
- DSCP Marking – Per 5Ql
- VLAN
- ViNR/VoNR
- EPS FallBack
- CBSD-SAS for N48 Model
- OAM-Tr069 for CM/FM/PM-KPI/Software upgrade/Plug & Play
- Synchronization - GPS
- Synchronization - PTP1588 for SA Model
- Max 128 Connected, 128 Active Users
SKU
- Model Name: NR xCell 60256AM
SKU1: SCU5050-N77 (3.8~4.2GHz)
Certification: CE (TBD) - Model Name: NR xCell 60256B1M
SKU2: SCU5050-N78H (3.7~3.8GHz)
Certification: CE (TBD) - Model Name: NR xCell 60256B2M
SKU3: SCU5050-N78L (3.3~3.57GHz)
Certification: NCC (TBD) - Model Name: NR xCell 60256CM
SKU4: SCU5050-N79 (4.8~4.9GHz)
Certification: TELEC/NCC (TBD) - Model Name: NR xCell 60256DM
SKU4: SCU5050-N48 (3.55~3.7GHz)
Certification: FCC/OnGo (TBD)
Ordering Information
- Wall/Pole Mounting Kit
- Directional Antenna Kit
