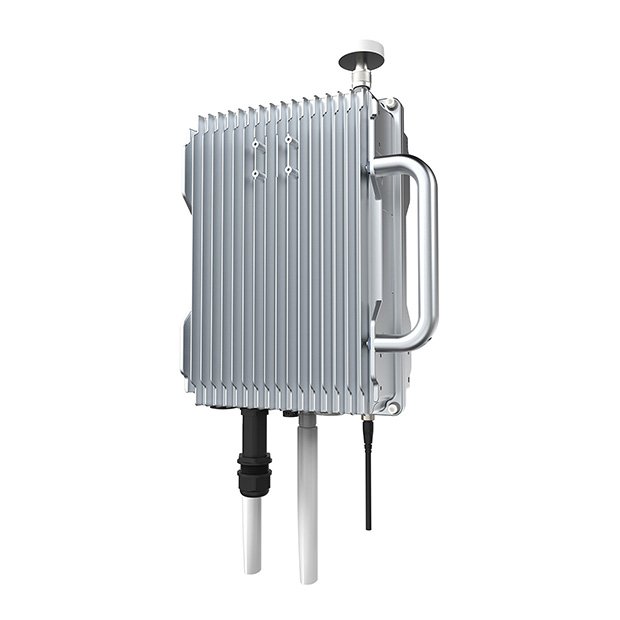

SCU2070
5G Sub-6 Outdoor Small Cell
An advanced, all-in-one 5G NR gNB Small Cell solution optimized for outdoor deployment, it is compliant with 3GPP Release 15 TDD technology. Its compact and low-power design ensures quick and easy installation
Askey SCU2070 is an advanced, all-in-one 5G NR gNB solution optimized for outdoor deployment. Compliant with 3GPP Release 15 TDD technology, its compact and low-power design ensures quick and easy installation.
High Performance: With a 5W output per port and external antenna support for Sub-6 GHz, it effectively improves 5G network coverage and capacity.
Flexible Management: Configure the device using a local web GUI or manage it centrally with Askey's comprehensive Device Management Platform (AMP), which offers both public cloud and on-premises deployment options.
Private Network Ready: The SCU2070 reduces the complexity of deploying private 5G networks for enterprise applications, making it an ideal solution for manufacturing, warehousing, logistics, event venues, and transportation.
Askey SCU2070 is an advanced, all-in-one 5G NR gNB solution optimized for outdoor deployment. Compliant with 3GPP Release 15 TDD technology, its compact and low-power design ensures quick and easy installation.
High Performance: With a 5W output per port and external antenna support for Sub-6 GHz, it effectively improves 5G network coverage and capacity.
Flexible Management: Configure the device using a local web GUI or manage it centrally with Askey's comprehensive Device Management Platform (AMP), which offers both public cloud and on-premises deployment options.
Private Network Ready: The SCU2070 reduces the complexity of deploying private 5G networks for enterprise applications, making it an ideal solution for manufacturing, warehousing, logistics, event venues, and transportation.
Specifications
General
- Band: N78
- Bandwidth: 100MHz
- TX Power (per port): 10 ~ 37dBm
- EIRP: (40+antenna gain) dBm
- 5G Antenna: 2x2 external Omni with peak gain 5dBi
- External Antenna Connector: 2 N-type for 5G antenna
- LED: 1 LED
- Backhaul: 2.5G WAN/10G SFP+
- Power Supply: AC90 ~ 264V
- Power Consumption: <100 W
- Active Users: 64
- DL/UL Data Rates:DDDSU: 750Mbps/200Mbps DSUU: 330Mbps/500Mbps DDDSU+DDSUU (7:3): 640Mbps/310Mbps
- Modulation: 256QAM DL/UL
- Coverage: LOS 500m ~ 1km for common usage (directional antenna)
- Installation: Wall/Pole mount
- IP Grade: IP66
- Timing Synchronization: GPS/GLONASS/Galileo/PTP 1588V2
Highly Optimized and Integrated with Askey AMP
- Zero-Touch Provisioning
- Call Performance KPI Tracking
- Cell Health Monitoring;
- Alarm Collection and Alerting Notification
- Active User Monitoring
- Schedulable Operations and Software Upgrade
- Diagnostic and Troubleshooting Traces
- SON/RRM Metrics Collection and Energy Management
- Telemetric Exporter for AI
Dimensions
- 231 x 321 x 135 (WxHxD, mm)
Weight
- <10 kgs
Operations and Maintenance
- IPv4/IPv6
- Local/Remote WebGUI Management
- TR069
- Fault Management
- Configuration Management
- Performance Management
- Security Management
- Software Upgrade
Environmental
Operating Temperature: -40°F to 131°F / -40℃ ~ 55℃Operating Humidity: 90% maximum, non-condensing
Surge Suppression
- Network interface: 1KV
- Power interface: 6KV
Basic Features
- SA Network Architecture
- 3GPP Release 15
- 3GPP Release 16 Partial
- Radio Link Adaptation
- Integrity – NIA1/NIA2
- Ciphering – NEA1/NEA2
- PCI Confliction Detection
- Close Loop Power Control-
- DL/UL Resource Scheduling
- Inter – RAT Handover
- Measurement Report
- NG/Xn Handover
- QOS 5Qi
- DSCP Marking – Per 5Qi
- VLAN
SKU
- Model Name: SCU2070 N78
SKU: SCU2070 N78 (3.7~3.8GHz)
Certification: CE
Ordering Information
- Wall/Pole Mounting Kit
- Directional Antenna Kit
