Civil IoT
The main obstacle to the deployment of IoT field comes from insufficient network coverage. When using a license-free ISM band, it not only interferes with the wireless network signal but also easily causes data packet drop. If a mobile network is deployed, large base stations and operating costs will be very pricey.
Askey Civil IoT solution is cost-effective with good coverage extension, by adopting the authorized frequency group to securely transmit data. It is specific for IoT applications.
Askey Civil IoT solution is cost-effective with good coverage extension, by adopting the authorized frequency group to securely transmit data. It is specific for IoT applications.

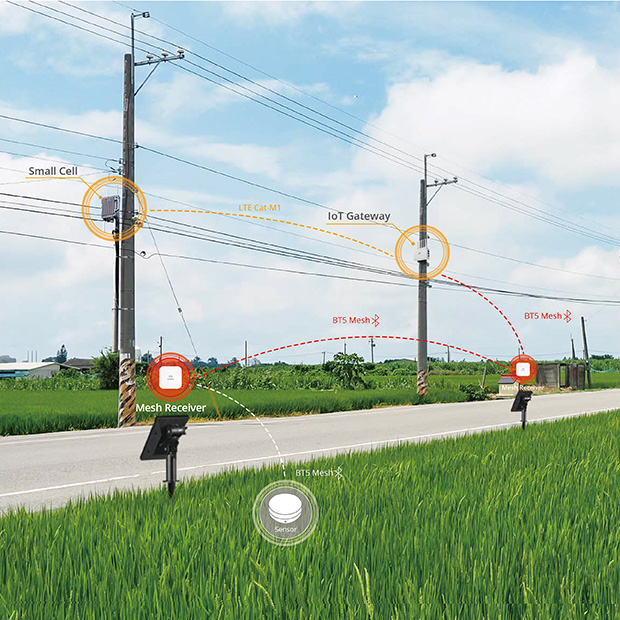

Commissioned by Taiwan's Ministry of Science and Technology, Askey designed and developed Civil IoT solution for the deployment in riverbanks, flood areas, farmlands and greenhouses, commercial seaports and others with easy and fast installation.
Askey Civil IoT solution processes data and information collection by LTE/Cat M1. It secures data transmission through licensed band 20 geared for environmental monitoring, disaster prevention, smart agriculture, and water resource management.
- Extend IoT network coverage
- Collect IoT data from various sensors
- Access band 20 by LTE/Cat-M1 to provide secure data transmission
- Use commercial 4G network or wireline networks to transfer IoT data to datacenters
- Provide the ability to manage devices

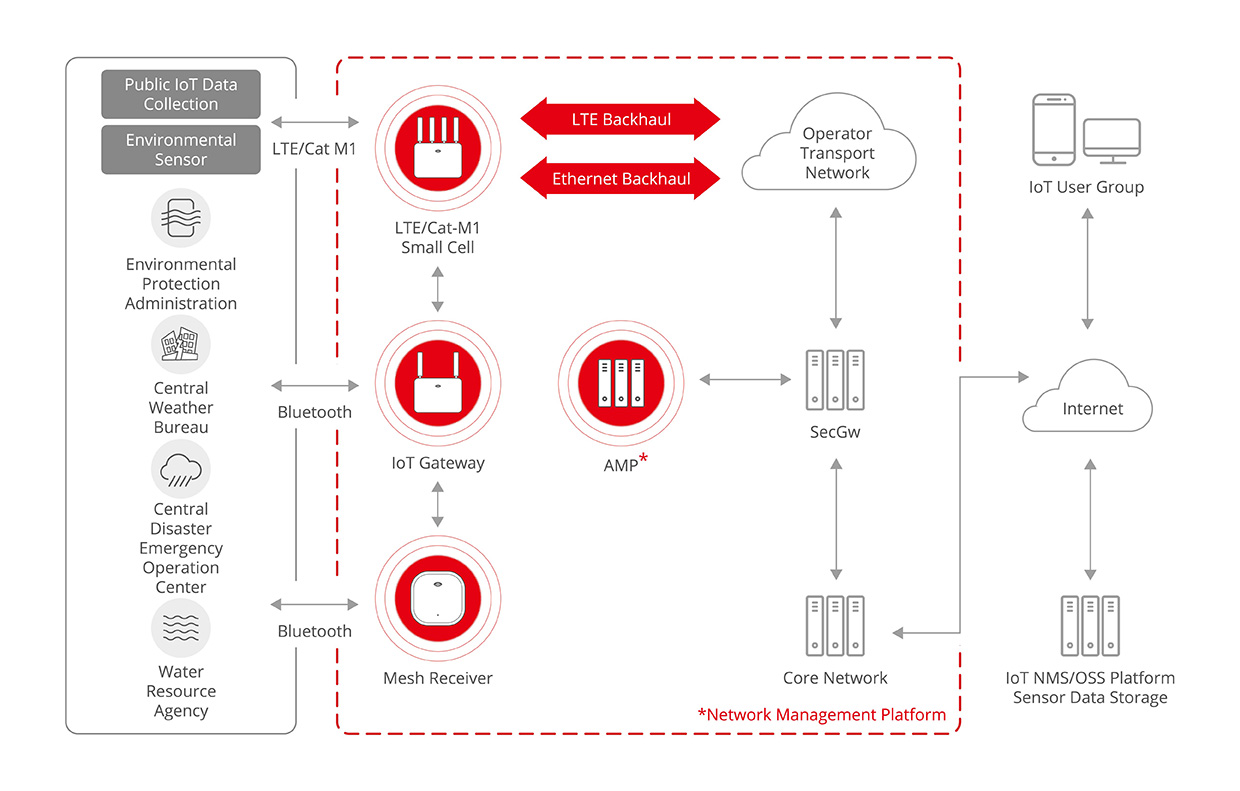

Askey Civil IoT solution includes LTE/Cat M1 small cell, IoT gateway and AMP network management platform, connected with various types of IoT sensors and 4G core networks. It features quickly deployment in the IoT domains, data collection from sensors, communication with data centers for analysis, and all devices control through AMP network management platform.
SFU4120U LTE/Cat M1
Small Cell
- LTE UE/Cat M1 UEs access to SFU4120U
- Connect Askey core network by SFU4120U LTE backhaul or Ethernet backhaul
- Telecom carriers can quickly set up LTE/Cat-M1 network by deploying SFU4120U, especially when enterprise base stations are without Cat-M1 technology
APL2000W IoT Gateway
- Built-in various communication interfaces including LTE Cat-M1, Wi-Fi, Bluetooth Mesh 5.0, Zigbee 3.0, Ethernet port, USD port and Serial port (RS232/RS485)
- Support MQTT Client v3.1 or more
- FOTA service system provides firmware download and update
AMP Network Management System Platform
- Provide more than 100,000 devices management
- Service carrier-grade equipment management with TR-069
- Flexible management for various devices including 5G/LTE Router, Wi-Fi Router, STB, VoIP, etc.
- Auto-provisioning and OTA firmware/applications upgrade
- Real-time control and fault management
