Drone Pilot
Askey Drone Pilot solution is designed and developed by Askey under the commission of the European Union. It provides an effective search and locates the injured with NSA Option 3x network architecture. In cases of the wounded search, a highly reliable data transmission is achieved between the drone and the 4G LTE/5G NR small cells, and the image streaming of the drone is transmitted through the 4G LTE small cells or 5G NR small cells.

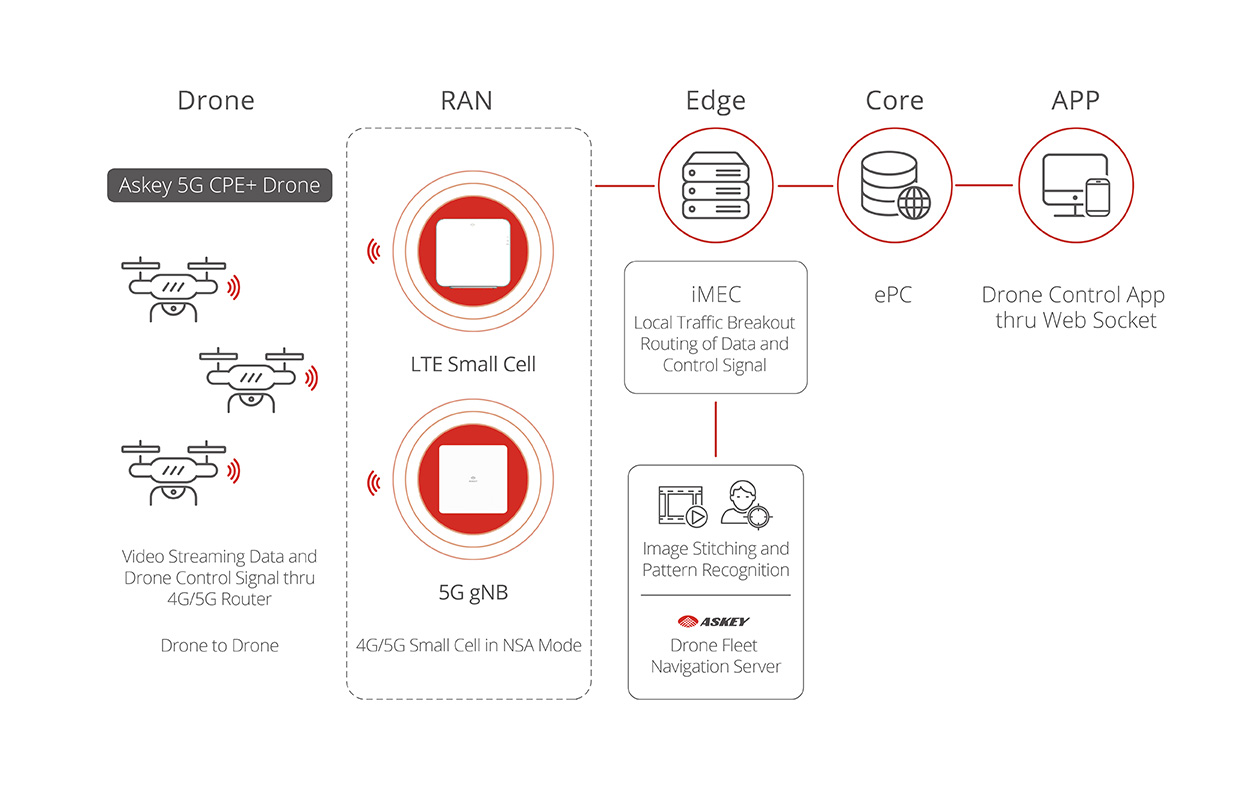

The image streaming of the drone is forwarded to the local iMEC through 4G LTE/5G NR small cells. iMEC provides traffic local offloading and AI edge computing to analyze each frame of image streaming and store the analysis results. Commanders can monitor the current status by a drone control app and guide rescuers in real time.
The image streaming of the drone is forwarded to the local iMEC through 4G LTE/5G NR small cells. iMEC provides traffic local offloading and AI edge computing to analyze each frame of image streaming and store the analysis results. Commanders can monitor the current status by a drone control app and guide rescuers in real time.
Askey Drone Pilot solution adopts authorized 3GPP 4G LTE Band 3 and 5G NR Sub-6GHz n78 to ensure reliable data transmission for remote monitoring applications such as emergency assistance, agricultural damage assessment, disaster evaluation, field patrol, and air pollution sensing.
• NSA Option 3x Network Architecture
• Provide real-time video streaming and a dual redundancy to return data when a drone searches for the injured
• iMEC offers local offloading of traffic and mobile edge computing
• Commanders monitor the current status by drone control App and guide the rescuers accurately
This solution is equipped with three drones with high-resolution video streaming, three dual-connected 5G NR Sub-6 dongles, three 4G LTE/5G NR small cells, an iMEC, an EPC, a drone fleet management system and a drone control application.
• NSA Option 3x Network Architecture
• Provide real-time video streaming and a dual redundancy to return data when a drone searches for the injured
• iMEC offers local offloading of traffic and mobile edge computing
• Commanders monitor the current status by drone control App and guide the rescuers accurately
This solution is equipped with three drones with high-resolution video streaming, three dual-connected 5G NR Sub-6 dongles, three 4G LTE/5G NR small cells, an iMEC, an EPC, a drone fleet management system and a drone control application.
SCE4000 4G+5G Sub-6GHz Small Cell
- NSA Option 3x Network Architecture
- 4G LTE B3 and 5G NR Sub-6GHz n78
- All-in-one small cell
- Handover between VoLTE and S1/X2
- S1 Auto Discovery and Setup
- Auto PCI Selection
- Auto Neighbor Relations (ANR)
- Earthquake and Tsunami Warning System (ETWS)
- Commercial Mobile Alert Service (CMAS)
NDQ1300 5G-Sub6 USB Dongle
- Support 5G NR Sub6 and LTE access technology including SA and NSA network architectures
- Combined with the flexibility of 5G NR Sub-6GHz and 4G LTE, it provides up to 2 Gbps of data throughput
- Provide low-latency, stable communication signals for AR/VR and IoT
- With USB type C interface to connect multiple devices, plug and play without driver installation
- IP54 waterproof
