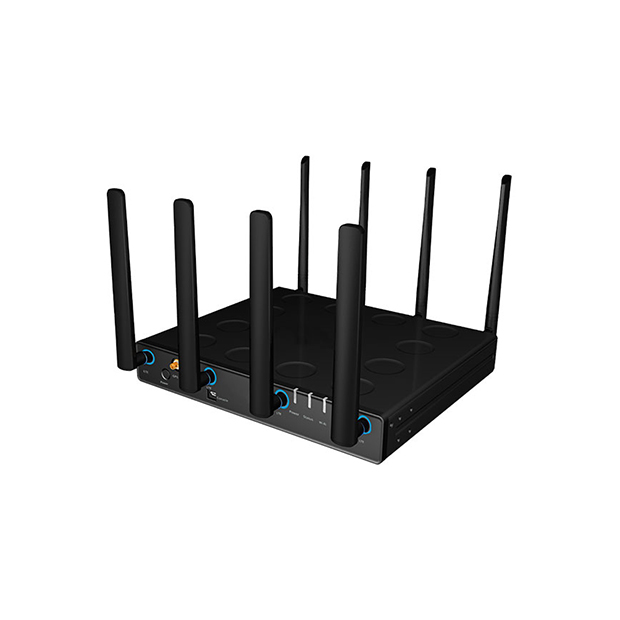

EAI2304P
LTE + Wi-Fi 6 Dual-Band Enterprise Indoor Router
It provides industry-leading high performance LTE connectivity as well as dual Ethernet WAN ports, LAN, and Wi-Fi service.
The Enterprise LTE Branch Router, EAI2304P, is an LTE Router for enterprise customers. It provides industry-leading high performance LTE connectivity as well as dual Ethernet WAN ports, LAN, and Wi-Fi service.
The router features multi-WAN connectivity that supports Cat.18 LTE-A mobile broadband with up to 1.2Gbps rate, and 2.5Gbps Ethernet WAN port broadband backhaul.
Besides DC supply, the router is combined with PoE (Power over Ethernet) support that eliminates the need for traditional power sources.
The EAI2304P also provides USB3.0 port for future expansion.
The Enterprise LTE Branch Router, EAI2304P, is an LTE Router for enterprise customers. It provides industry-leading high performance LTE connectivity as well as dual Ethernet WAN ports, LAN, and Wi-Fi service.
The router features multi-WAN connectivity that supports Cat.18 LTE-A mobile broadband with up to 1.2Gbps rate, and 2.5Gbps Ethernet WAN port broadband backhaul.
Besides DC supply, the router is combined with PoE (Power over Ethernet) support that eliminates the need for traditional power sources.
The EAI2304P also provides USB3.0 port for future expansion.
Specifications
Physical
- CPU: Qualcomm IPQ8072A quad A53 64bit @2.2Ghz
- DRAM: DDR4 DRAM - 1GB
- Flash: eMMC - 8GB
- Dimensions: 282 mm (W) x 237 mm (L) x 43mm (H) (11inch wide, 1U height)
- Interfaces:
WAN: 1 x 100/1000/2500 Base-T Ethernet
LAN: 4 x 100/1000Base-T Ethernet, LAN4
with POE
1 x USB3.0
1 x RJ45
1 x Micro-USB
1 x Nano SIM slot
9 x SMA connector for antenna - Battery: 1 x 2900mAh x 7.2V removable Li-ion Battery Pack.
- LED Indicator: 4 x LED: Power, Status, Wi-Fi, LTE
- Button: Power/WPS/Reset to Default
- Antenna type:
4 x external SMA dual-band Wi-Fi antenna
4 x external SMA LTE antenna
1 x external GNSS antenna - Mounting: Rack and wall mountable
Wi-Fi
- Standards: 2.4Ghz 802.11b/g/n/ax 5Ghz 802.11a/n/ac/ax
- Radio Chains: 4 x 4 : 4
- Spatial Streams: 4 for both SU-MIMO & MU-MIMO
- Antenna: Up to 4.5dBi
- Performance: 2.4Ghz: 1100 Mbps,
5Ghz: 2400 Mbps
Max Number of Clients: Up to 160 per radio - ESSIDs: Up to 8 per radio
LTE
- Radio Chains: 4 x 4 : 4
- Spatial Streams: 4 for both SU-MIMO & MU-MIMO
- Antenna: Up to 4.5dBi
- Performance: 2.4Ghz: 1100 Mbps,
5Ghz: 2400 Mbps
Max Number of Clients: Up to 160 per radio - ESSIDs: Up to 8 per radio
- LTE Standard: Cat.18 Qualcomm SDX20
- LTE Bands:
LTE FDD: 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29(DL), 30, 32, 66, 71
LTE TDD: 38, 39, 40, 41, 42, 43, 46(DL), 48
HSPA+: 1, 2, 4, 5, 8, 9, 19 - Spatial Streams: 4 x 4 MIMO Downlink
- Performance: DL - 1200Mbps; UL - 150Mbps
- GNSS: GPS, GLONASS, Galileo
