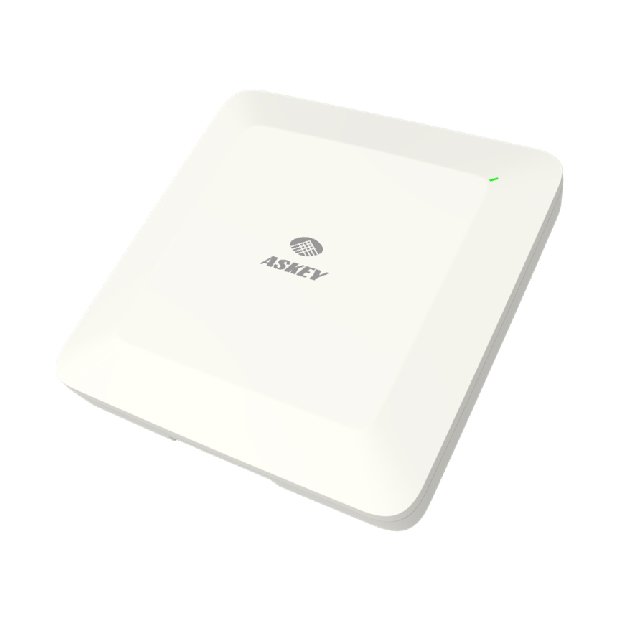

EAI2308P
Indoor Enterprise AP
Dual-band 4 x 4 Wi-Fi 6 Enterprise AP including Radio Resource Management Function
Askey EAI2308P provides dual-band dual-concurrent 4 x 4 Wi-Fi 6 (802.1ax) with dedicating scanning WiFi radio for RRM, optimizing channel selection and TX power for entire deployment. Each AP is equipped with built-in AP controller function, capable of controlling multiple APs in the same group, and AP controller will automatically appoint one AP to be its backup for uninterrupted networking with reduced IT cost and collaboration efficiency architecture. By fulfilling enterprise requirements, such as VLAN application, WPA2/WPA3, and QoS, EAI2308P is an appropriate solution for enterprise indoor access point wherever offices, large stores, factories and fields required full Wi-Fi coverage.
The AP also performs all the statistics to Cloud management, and Askey Cloud management SW offers single or multiple groups of enterprise APs with one simple web interface, only available by request. With diverse mounting kits, it supports T-rail, ceiling and wall mount for DC12V or POE+. Economy, flexible on installation and scalability are extra benefits of our indoor enterprise AP.
Askey EAI2308P provides dual-band dual-concurrent 4 x 4 Wi-Fi 6 (802.1ax) with dedicating scanning WiFi radio for RRM, optimizing channel selection and TX power for entire deployment. Each AP is equipped with built-in AP controller function, capable of controlling multiple APs in the same group, and AP controller will automatically appoint one AP to be its backup for uninterrupted networking with reduced IT cost and collaboration efficiency architecture. By fulfilling enterprise requirements, such as VLAN application, WPA2/WPA3, and QoS, EAI2308P is an appropriate solution for enterprise indoor access point wherever offices, large stores, factories and fields required full Wi-Fi coverage.
The AP also performs all the statistics to Cloud management, and Askey Cloud management SW offers single or multiple groups of enterprise APs with one simple web interface, only available by request. With diverse mounting kits, it supports T-rail, ceiling and wall mount for DC12V or POE+. Economy, flexible on installation and scalability are extra benefits of our indoor enterprise AP.
Specifications
Physical
- CPU: Qualcomm IPQ8072A quad A53 64bit @2.2Ghz
- DRAM: DDR4 DRAM : 1GB
- Flash: eMMC: 4GB
- Power Input:
DC input: 12V
PoE: 802.3at PD - Dimensions: 220 x 220 x 43 (W x L x H, mm)
- Weight: 1.25 kg
- Interfaces
1 x 1/2.5 Gbps Ethernet (PoE port)
1 x 1 Gbps Ethernet - LED Indicator: 1 x Multi-color LED
- Button: Reset to default
- Power Consumption: 21Watt (802.3at POE+ or DC in)
- Environmental Conditions:
Operating temperature: 0°C ~ 50°C
Operating humidity: 10% ~ 95% non-condensing
Storage temperature: -40°C ~ 80°C
Storage humidity: 5% ~ 95% non-condensing - AntennaType:
4 x integrated single band, 2.4~2.5 GHz omnidirectional antennas
4 x integrated single band, 5.1~5.8 GHz omnidirectional antennas
1 x internal dual band WiFi antenna - Mounting: T-rail, ceiling or wall mountable
Wi-Fi
- Standards:
2.4 Ghz 802.11b/g/n/ax
5 Ghz 802.11a/n/ac/ax - Supported Rates:
802.11ax: 4 ~ 2400 Mbps
802.11ac: 6.5 ~ 1732 Mbps
802.11n: 6.5 ~ 600 Mbps
802.11a: 6 ~ 54 Mbps
802.11g: 6 ~ 54 Mbps
802.11b: 1 ~ 11 Mbps - Radio Chains:
2.4 Ghz 4 x 4: 4
5 Ghz 4 x 4: 4 - Spatial Streams: 4 for both SU-MIMO & MU-MIMO
- Antenna:
2.4 Ghz up to 5 dBi
5 Ghz up to 4.5 dBi - Performance:
2.4 Ghz : 1100 Mbps
5 Ghz : 2400 Mbps - Maximum Transmit Power:
2.4 GHz: up to 27 dBm *1 (combined power)
5 GHz: up to 28 dBm *1 (combined power) - Minimum Receiver Sensitivity:
2.4 Ghz HT20/VHT20/HE20: -93 dBm @MCS0
2.4 Ghz HT40/VHT40/HE40: -94 dBm @MCS0
5 Ghz HT20/VHT20: -95 dBm @ MCS0
5 Ghz VHT40/HE40: -93 dBm @ MCS0
5 Ghz VHT80/HE80: -89 dBm @ MCS0 - Max Number of Clients: Up to 128 per radio, 256 per AP
- ESSIDs: Up to 4 per radio
Software Features
- IP and VLAN:
DHCP server/relay
Multiple SSIDs and VLAN mapping - Wi-Fi:
WMM queues priority
Rate limitation per SSID
Access list
Client Authentication Protocols
Interwork with external RADIUS Server
WPA2/WPA3 enterprise/personal
Hotspot2.0
Beamforming
Airtime Fairness
Client Isolation - Radio Resource Management:
Automatic channel allocation
Automatic Power Control
Coverage Hole Detection
Load Balancing
Fast Roaming
Band Steering - Management:
Multi-tenants
Grouping and profiles
Mass Provisioning and FOTA
Account management
Zero touch deployment - Monitoring:
AP, Clients Monitoring
Rogue AP detection/reporting
Visualization & report for AP
Location Service and Network Map
Data monitoring and notification
System Performance Monitoring
Logs monitoring
Client statistics and detection
