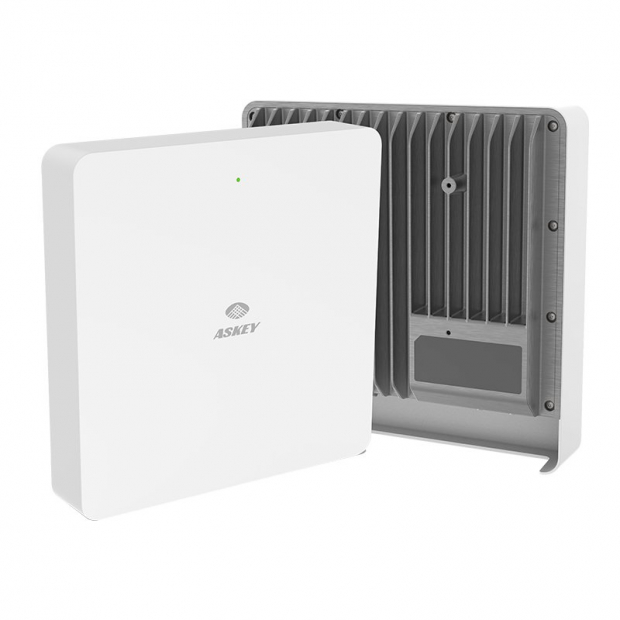

SCE2200

5G Sub-6 Indoor Small Cell

Meeting the requirement for enterprise-level N78/N79 band indoor connectivity, it is an ideal and powerful solution to deliver a superior network access experience.
Askey’s SCE2200 provides indoor coverage of 5G Sub-6. The family of NR xCell 80156 series includes 2 different SKUs for SCE2200 N78 and N79, which meet the critical demand for enterprise-level connectivity. By integrating 5G baseband, radio and antenna into a single product, it breaks installation barriers. With this carrier-grade Askey Small Cell end-to-end solutions, it is definitely suitable for various scenarios, such as smart buildings, factories, hospitals, shopping malls, elevators, underground parking etc.
Share

Specifications

General

  • Band
    N78/N79
  • Bandwidth
    • N78: 20/30/40/50/60/70/80/90/100MH
    • N79: 100MHz
  • Max. TX Power
    N78/N79: 24dBm
  • EIRP
    N78/N79: 32dBm
  • Antenna
    Internal/External 2x2 MIMO
  • LED: 1 LED
  • Backhaul: 2.5G WAN/10G SFP+
  • Power Supply: DC 12V/POE++ (802.3bt)
  • Power Consumption: <60 W
  • Active Users: 32~64
  • Data Rates:
    DDDSU: 750Mbps/200Mbps
  • Installation: Wall/Ceiling/Pole mount
  • IP Grade: IP50

Dimensions

  • 250 x 250 x 65 (WxHxD, mm)

Weight

  • <2.5 kgs

Environmental

  • Operating Temperature: -5℃ ~ 45℃
  • Operating Humidity: 90% maximum, non-condensing

Operations and Maintenance

  • Fault Management
  • Configuration Management
  • Performance Management
  • Security Management
  • Software Upgrade

Features

  • SA Network Architecture
  • 3GPP Release 15
  • DL/UL Resource Scheduling
  • WebGUI Management
  • All-in-one Product
  • NG/Xn Handover

SKU

  • Model Name: NR xCell 80156B
    • SKU1: SCE2200 N78 (3.3~3.8GHz)
  • Model Name: NR xCell 80156C
    • SKU2: SCE2200 N79 (4.4~5.0GHz)
