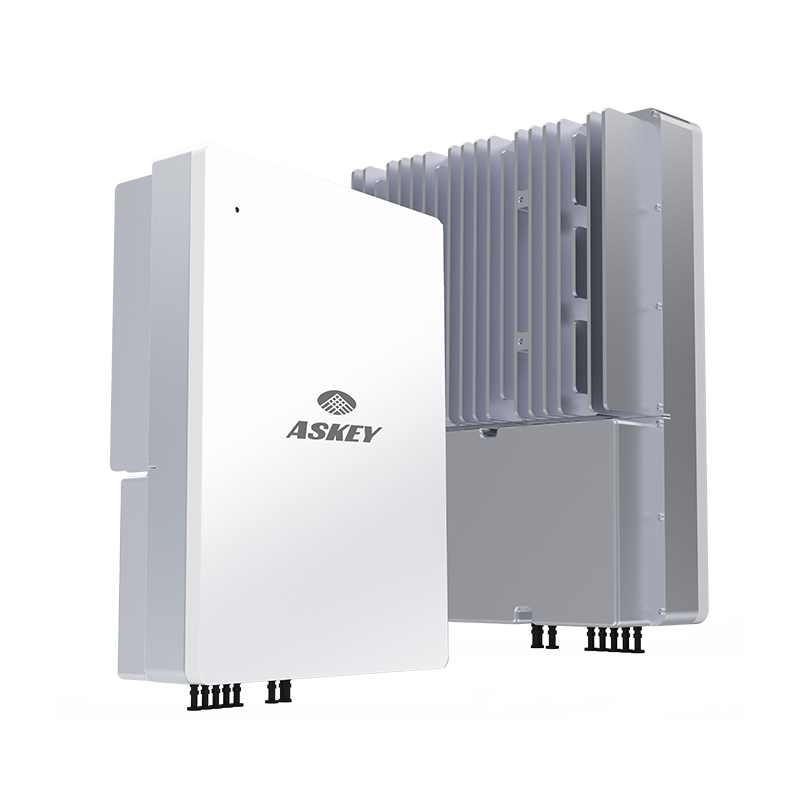

SCU2000

5G Sub-6 Outdoor Small Cell

Askey SCU2000 is a customer-driven small cell that fully supports enterprise-level outdoor coverage of 5G Sub-6GHz.

The family of Askey SCU2000 NR xCell 60156 series includes 2 different SKUs for SCU2000 N78 and N79, which meet the demand for enterprise-level connectivity. This super and compact small cell has integrated 5G baseband, radio and antenna into a single product, which helps break installation barriers. With the carrier-grade, end-to-end Askey Small Cell solutions, they solve the issues in various scenarios, such as smart buildings, factories, hospitals, shopping malls, elevators, underground parking etc.
Share

Specifications

General

  • Band: N78/N79
  • Bandwidth
    • N78: 20/30/40/50/60/70/80/90/100MH
    • N79: 100MHz
  • TX Power (per port): 0 ~ 24dBm
  • EIRP: (27+antenna gain) dBm
  • 5G Antenna: 2x2 internal Omni with peak gain 5dBi
  • External Antenna Connector:                                                                            2 SMA for 5G antenna                                                                                        1 SMA for GPS antenna
  • LED: 1 LED
  • Backhaul: 2.5G WAN/10G SFP+
  • Power Supply: AC90~264V
  • Power Consumption: <60 W
  • Active Users: 64
  • DL/UL Data Rates:
    DDDSU: 750Mbps/200Mbps                                                                  DSUUU: 300Mbps/500Mbps
  • Modulation: 256QAM DL/UL
  • Coverage: LOS 70 ~ 100m radius for common usage
  • Installation: Wall/Pole mount
  • IP Grade: IP65
  • Timing Synchronization: GPS/GLONASS/Galileo/PTP 1588V2

Dimensions

  • 270 x 360 x 100 (WxHxD, mm)

Weight

  • <9 kgs

Environmental

  • Operating Temperature: -4°F to 131°F /
     -20℃ ~ 55℃
  • Operating Humidity: 90% maximum, non-condensing
  • Surge Suppression:                                                                                  Network interface: 1KV                                                                                    Power interface: 6KV

Operations and Maintenance

  • IPv4/IPv6
  • Local/Remote WebGUI Management
  • TR069
  • Fault Management
  • Configuration Management
  • Performance Management
  • Security Management
  • Software Upgrade

Highly Optimized and Integrated with Askey AMP

  • Zero-Touch Provisioning
  • Call Performance KPI Tracking
  • Cell Health Monitoring
  • Alarm Collection and Alerting Notification
  • Active User Monitoring
  • Schedulable Operations and Software Upgrade
  • Diagnostic and Troubleshooting Traces
  • SON/RRM Metrics Collection and Energy Management
  • Telemetric Exporter for AI

Basic Features

  • SA Network Architecture
  • 3GPP Release 15
  • 3GPP Release 16 Partial
  • Radio Link Adaptation
  • Integrity – NIA1/NIA2
  • Ciphering – NEA1/NEA2
  • PCI Confliction Detection
  • Close Loop Power Control-
  • DL/UL Resource Scheduling
  • Inter – RAT Handover
  • Measurement Report
  • NG/Xn Handover
  • QOS 5Qi
  • DSCP Marking – Per 5QI
  • VLAN

SKU

  • Model Name: SCU2000
    • SKU3: SCE2050 N78 (3.3 ~ 3.8GHz)
    • Certification: NCC
  • Model Name: SCU2000 N79
    • SKU5: SCU2050 N79 (4.4 ~ 5.0GHz)
    • Certification: NCC

Ordering Information

  • Wall/Pole Mounting Kit
 SCE2200
