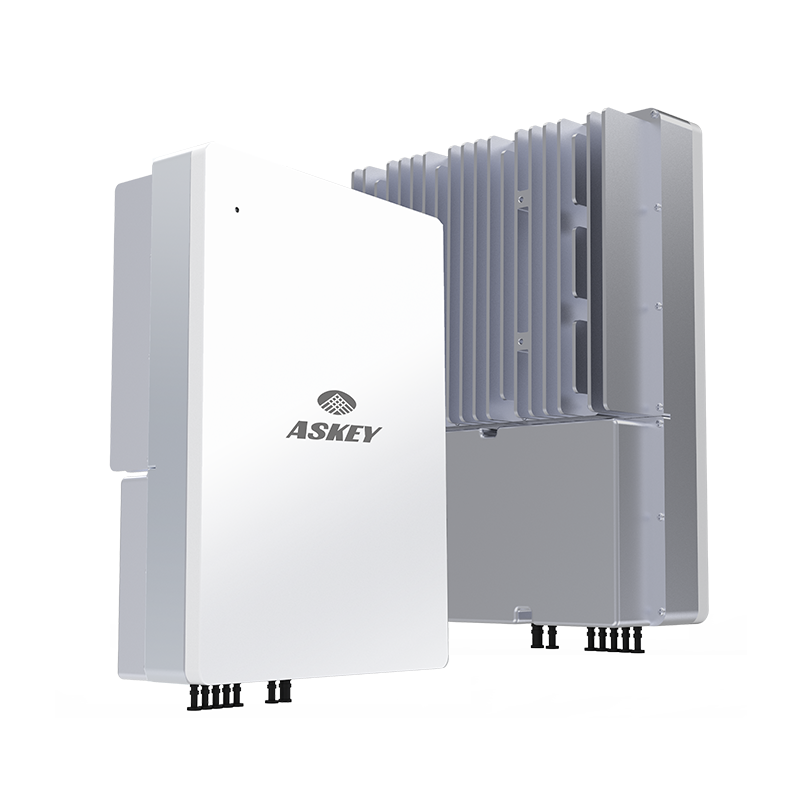

SCU2050
5G Sub-6 Outdoor Small Cell
Askey SCU2050 is a customer-driven small cell that fully supports enterprise-level outdoor coverage of 5G Sub-6GHz.
The family of Askey SCU2050 NR xCell 60116A series includes 5 different SKUs for SCU2050 N48, N77, N78 and N79, which meet the demand for enterprise-level connectivity. It is not only an ideal and powerful solution to deliver a superior network access experience, but also has integrated 5G baseband, radio and antenna into a single product to break installation barriers. Applied carrier-grade Askey Small Cell End-to-end Solutions, they solve the issues in various scenarios, such as smart buildings, factories, hospitals, shopping malls, elevators, underground parking etc.
The family of Askey SCU2050 NR xCell 60116A series includes 5 different SKUs for SCU2050 N48, N77, N78 and N79, which meet the demand for enterprise-level connectivity. It is not only an ideal and powerful solution to deliver a superior network access experience, but also has integrated 5G baseband, radio and antenna into a single product to break installation barriers. Applied carrier-grade Askey Small Cell End-to-end Solutions, they solve the issues in various scenarios, such as smart buildings, factories, hospitals, shopping malls, elevators, underground parking etc.
Specifications
General
- Band
N48/N77/N78/N79 - Bandwidth
- N48: 20/30/40MHz
- N77: 40/50/60/70/80/90/100MHz
- N78: 20/30/40/50/60/70/80/90/100MHz
- N79: 100MHz
- Max. TX Power
- N48: EIRP < 30dBm
- N77/N78/N79: 24dBm
- EIRP
- N48 < 30dBm
- N77/N78/N79: 31dBm
- Antenna
Internal/External 2x2 MIMO - LED: 1 LED
- Backhaul: 2.5G WAN/10G SFP+
- Power Supply: AC 90~264V
- Power Consumption: < 70 W
- Active Users: 16~64
- Data Rates:
DDDSU: 750Mbps/200Mbps - Coverage
LOS 100m radius for common usage - Installation: Wall/Pole mount
- IP Grade: IP65
Dimensions
- 270 x 355 x 100 (WxHxD, mm)
Weight
- <7 kgs
Environmental
- Operating Temperature: -20℃ ~ 55℃
- Operating Humidity: 90% maximum, non-condensing
Operations and Maintenance
- Fault Management
- Configuration Management
- Performance Management
- Security Management
- Software Upgrade
Features
- SA Network Architecture
- 3GPP Release 15
- Self Organzing Networks
- DL/UL Resource Scheduling
- Measurement Report
- NG/Xn Handover
- WebGUI Management
SKUs
- Model Name: NR xCell 60156A
- SKU1: SCU2050 N77 (3.55~4.2GHz)
- SKU2: SCU2050 N78 (3.55~3.8GHz)
- SKU3: SCU2050 N48 (3.55~3.7GHz)
- Model Name: NR xCell 60156B
- SKU4: SCU2050 N78 (3.3~3.8GHz)
- Model Name: NR xCell 60156C
- SKU5: SCU2050 N79 (4.5~4.9GHz)
