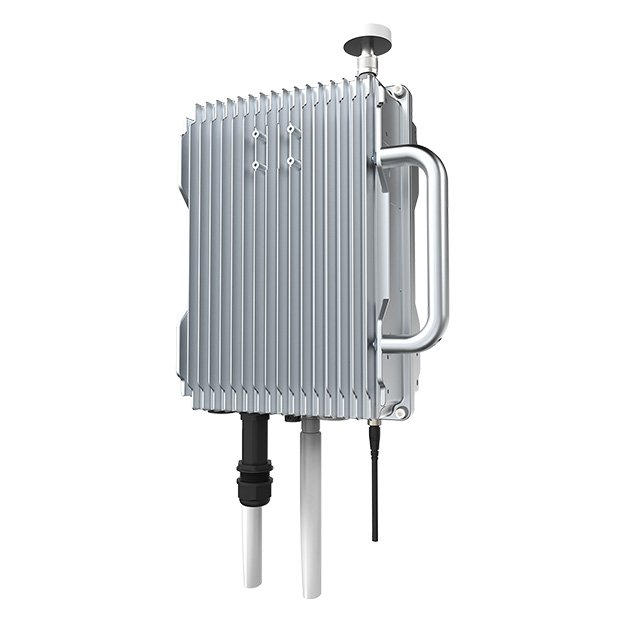

SCU2060
5G Sub-6 Outdoor Small Cell
Askey SCU2060 is a customer-driven small cell that fully supports enterprise-level outdoor coverage of 5G Sub-6GHz with 5W TX power per antenna port.
Meeting the demand for enterprise-level outdoor connectivity, it is an ideal and powerful solution to deliver a superior network access experience. This super and compact small cell has integrated 5G baseband and radio into a single product, which helps break installation barriers. SCU2060 Small Cell is part of the carrier-grade, end-to-end Askey Small Cells solution that is definitely suitable for various scenarios, such as smart factories, smart transportation, smart city, lamp posts etc.
Meeting the demand for enterprise-level outdoor connectivity, it is an ideal and powerful solution to deliver a superior network access experience. This super and compact small cell has integrated 5G baseband and radio into a single product, which helps break installation barriers. SCU2060 Small Cell is part of the carrier-grade, end-to-end Askey Small Cells solution that is definitely suitable for various scenarios, such as smart factories, smart transportation, smart city, lamp posts etc.
Specifications
General
- Band：N79 (4.8~4.9GHz)
- Bandwidth：100MHz
- Max. TX Power：5W (37dBm) per port
- EIRP
- 52dBm (Directional Antenna)
- 45dBm (Omni Antenna)
- Antenna：External 2x2 MIMO
- LED: 1 LED
- Backhaul: 2.5G WAN/10G SFP+
- Power Supply: AC 90~264V
- Power Consumption: < 100 W
- Active Users: 64
- Time Slot vs Data Rates
- DDDSU: 750Mbps/200Mbps
- DSUUU: 330Mbps/610Mbps
- DDDSU+DDSUU (7:3): 640Mbps/310Mbps
- 4:4 Semi-Synchronous TDD: 480Mbps/432Mbps
- 7:2 Synchronous TDD: 765Mbps/216Mbps
- 2:6 Semi-Synchronous TDD: 320Mbps/648Mbps
- 3:5 Semi-Synchronous TDD: 380Mbps/540Mbps
- Modulation 256QAM DL/UL
- Coverage
LOS 500m for common usage (Directional Antenna) - Installation: Wall/Pole mount
- IP Grade: IP65
- Timing Synchronization: GPS/PTP
Dimensions
- 321 x 231 x 135 (WxHxD, mm)
Weight
- <10 kgs
Environmental
- Operating Temperature: -40℃ ~ 55℃
- Operating Humidity: 90% maximum, non-condensing
Operations and Maintenance
- IPv4/IPv6
- Local/Remote WebGUI Management
- TR069/Netconf
- Fault Management
- Configuration Management
- Performance Management
- Security Management
- Software Upgrade
- KPI Counter
Features
- SA Network Architecture
- 3GPP Release 15
- 3GPP Release 16 Partial
- Self Organzing Networks
- DL/UL Resource Scheduling
- Measurement Report
- NG/Xn Handover
- WebGUI Management
- One-way application latency of less than 10ms (device to edge)
SKU
- Model Name: NR xCell 60156CW
Ordering Information
- ANT-OMNI-KIT-5D:
188mm xψ20mm Omni antenna with 5dBi peak gain n79 frequency - ANT-DIR-KIT-12D:
- 220x220mm directional antenna with 12dBi peak gain 4.8Ghz~4.9Ghz Frequency range
- Wall/Pole mounting kit and two 2meter antenna cable
